Parts & accessories
Keep your modules running.
Replacement cartridges, plates, manifolds and tubing for Swing and Palisade, plus guide rails and lifting tools. Part numbers are confirmed on the quotation.
Swing MBR
Swing replacement cartridges.
PVDF or PVDF with graphene (PES coming) · permanently wetted dry film.
| Item | Part | Area | Description |
|---|---|---|---|
| S-20 | Swing 8-0.5 cartridge | 6.25 m² | Replacement cartridge, Swing-8 family |
| S-21 | Swing 8 cartridge | 12.5 m² | Standard Swing-8 replacement cartridge, 114 sheets |
| S-22 | Swing 8-1.5 cartridge | 18.75 m² | Replacement cartridge, Swing-8 family |
| S-23 | Swing 9-0.5 cartridge | 11.5 m² | Replacement cartridge, Swing-9 family |
| S-24 | Swing 9 cartridge | 23 m² | Standard Swing-9 replacement cartridge, 208 sheets |
Frame, permeate piping and aeration block are supplied with the complete module. For frame extras, consult the factory.
Palisade MBR
Palisade parts, made in Poughkeepsie.
| Item | Part | Description |
|---|---|---|

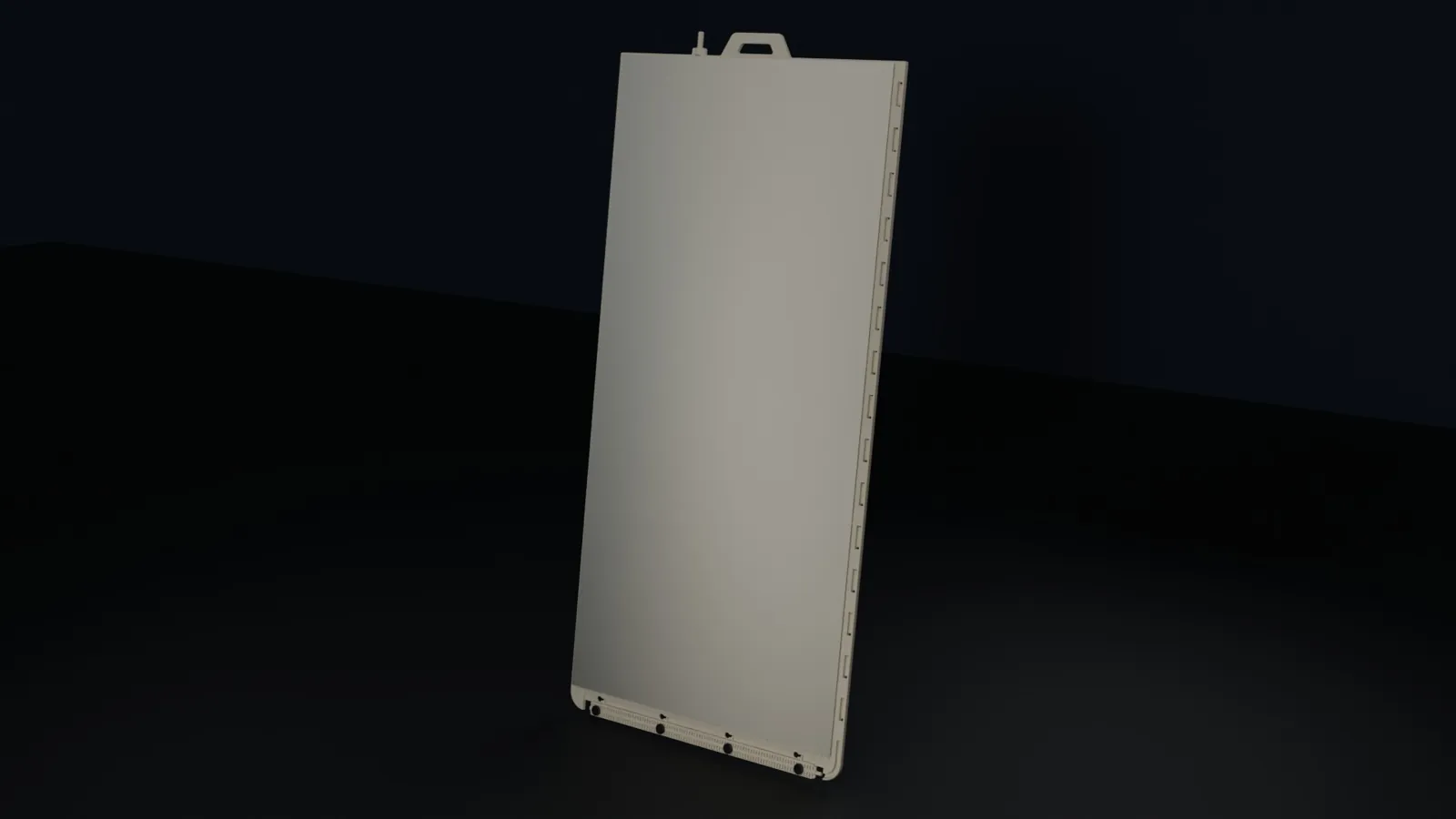

| P-10-U | Membrane + plate (UF) | PES membrane welded to PP plate, 0.04 µm UF |
| P-10-M | Membrane + plate (MF) | PES membrane welded to PP plate, 0.4 µm MF |
| P-11 | Air scour manifold kit | New scour manifolds plus a length of silicone tubing to the compressed-air manifold |
| P-14 | Silicone tubing | By the roll (100 m per carton) or standard cut length |
| P-15 | PVC permeate manifold | Replacement permeate manifold |
| P-16 | PVC compressed-air manifold | Replacement air manifold |
Guide rails
Optional for Swing and Palisade. Lower and lift modules in a straight line — often needed for a hollow-fiber retrofit.
Lifting tools
Optional lifting attachments for module pulls and cartridge service.
Tailored to your plant
Tell us how you run and we will tune parts and kits to your operation: tom@zyramic.com.
Need parts?
Send the item numbers and quantities — part numbers are confirmed on the quotation.
