Palisade MBR
Robust. Highest US content. Advanced hybrid permanently wetted PES from Germany. No PFAS. Polymer plate with targeted scour. BABA at the module. Cut / weld / assemble / pack in Poughkeepsie.
Membrane modules · MBR · UF · Poughkeepsie, New York
We manufacture the modules: plate, thin-film, and ceramic.
Four families. One source. Palisade MBR, Swing MBR, Ceramic MBR and UF, Scrub UF. Modules, units, and packaged skids. Not full plant builds.
How to choose
Start with the duty: MBR or UF. Then the platform.
Tight footprint or retrofit: Swing MBR. Harsh feeds (oils, acids, high solids): Ceramic. Highest US content / BABA: Palisade MBR. UF without backwash: Scrub UF.
Palisade MBR
Robust. Highest US content. Advanced hybrid permanently wetted PES from Germany. No PFAS. Polymer plate, targeted scour, BABA at the module.

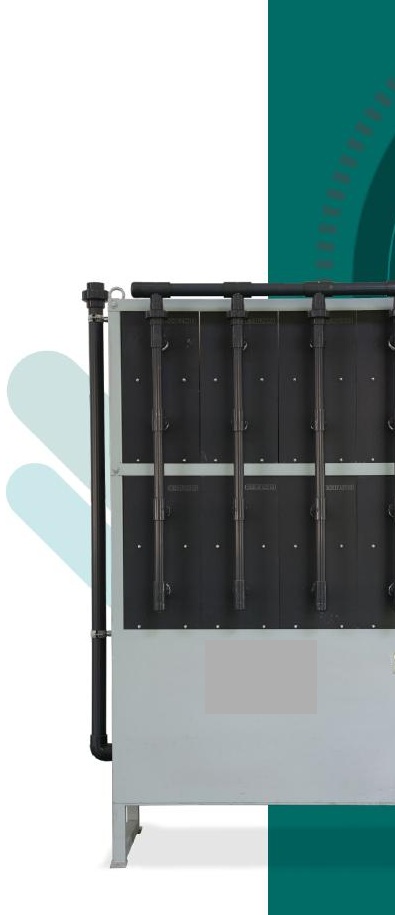

Swing MBR
Compact, lowest footprint. Very affordable and modular. Thin-film composite with conventional air scour. Packing density + Swing-8 / Swing-9.
See all four
Ceramic for hard feeds and backwash. Scrub UF for self-cleaning UF with circulating rubber media. Full compare on How to choose.
24/7 scour0.35 SCFM/m2 continuous
Every plate2.4–2.6 m/s at channel base
Open channelsEvery plate stays open
Plant timeYou stay out of the tank
Short plates41.2 in — the top still cleans
Real spacing6.4 mm channel gap

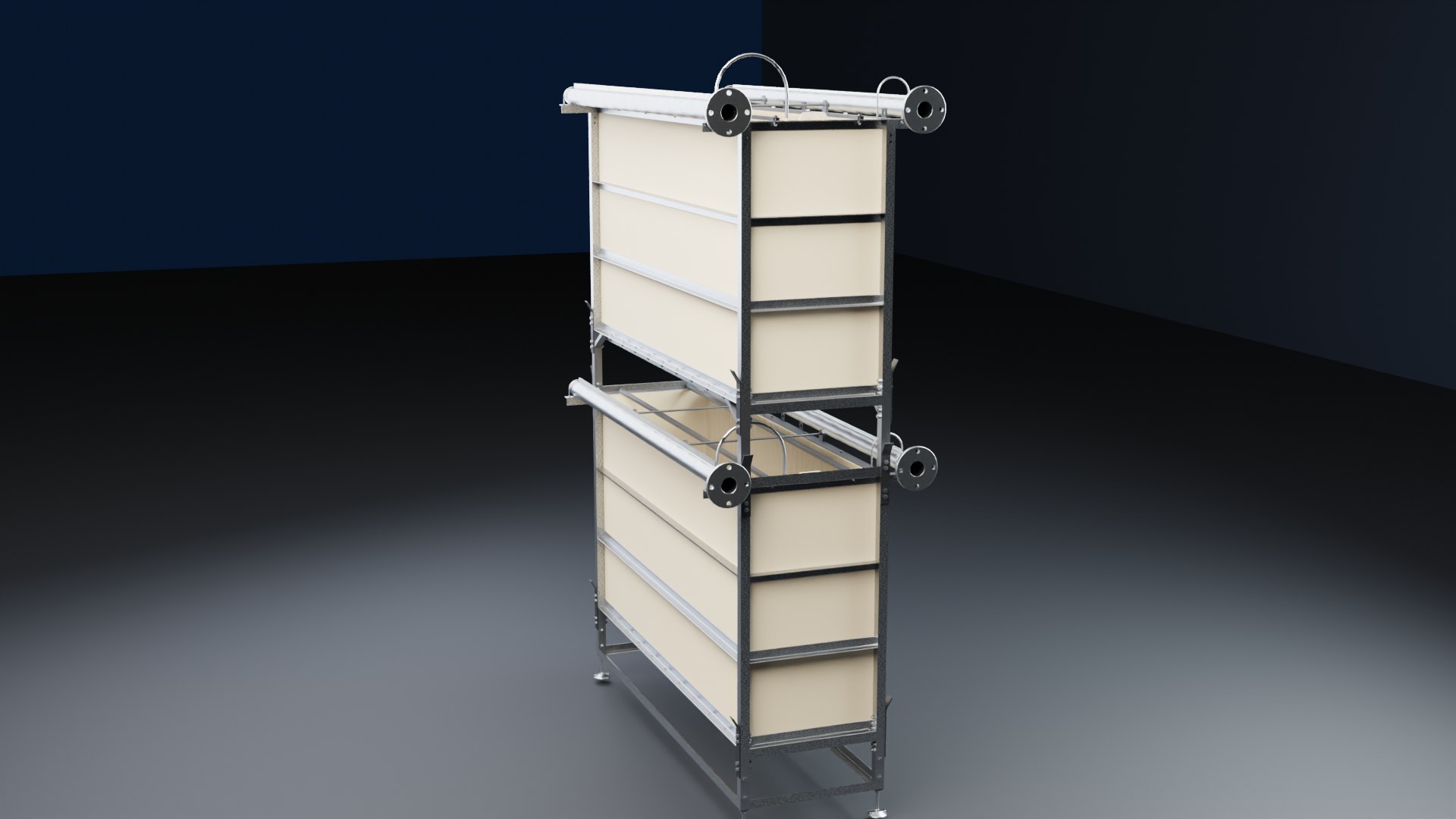

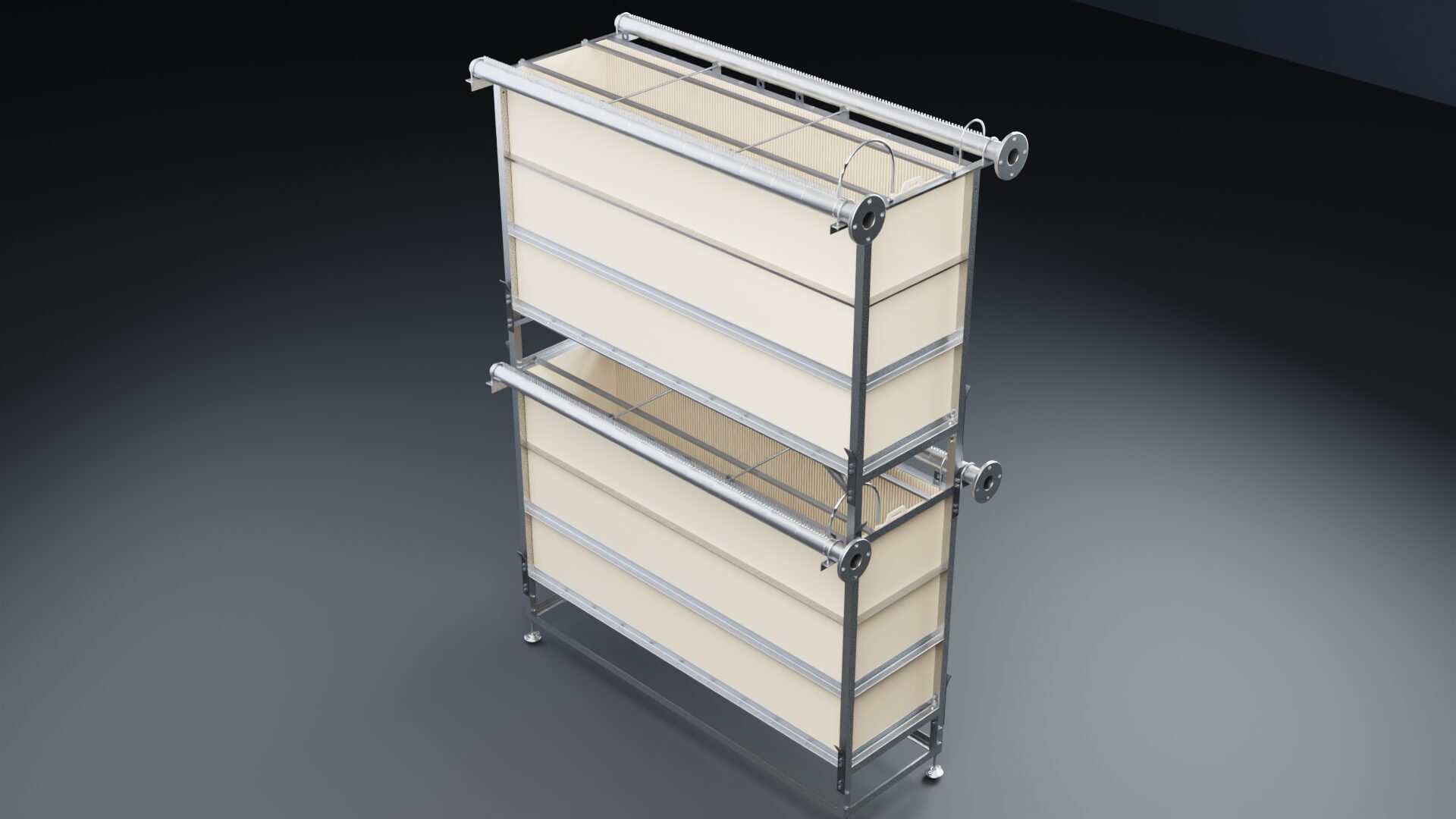

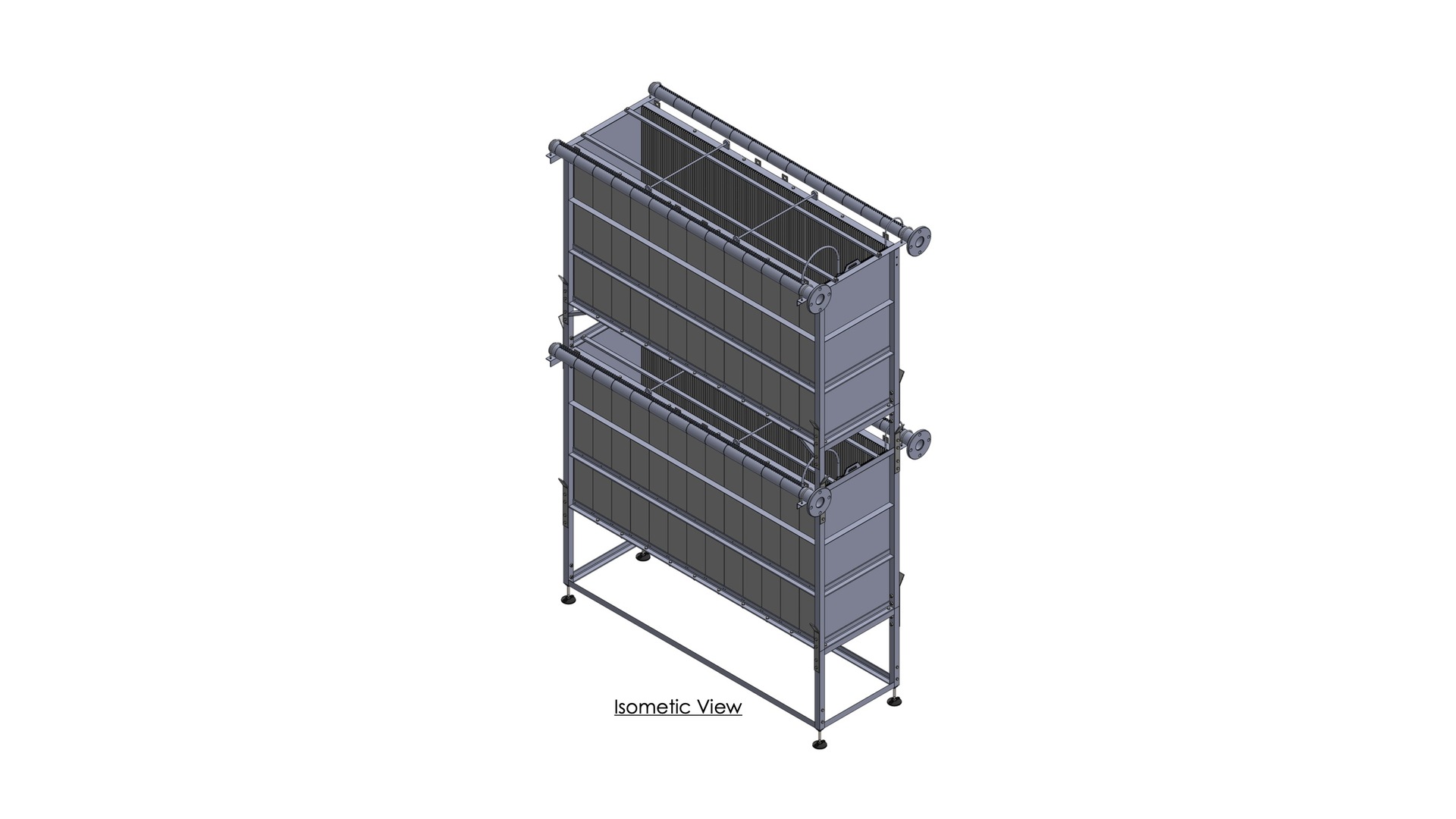

The cassette
Drop it in. Run it.
| 130-plate | 260-plate | |
|---|---|---|
| Membrane area | ≈136.5 m2 | ≈273 m2 |
| Permeate | 7.5–12.6 gpm | 15–25 gpm |
| Flux (prelim.) | 7.4–12.3 gfd | |
| Scour air | 48 SCFM | 96 SCFM |
| Scour intensity | 10 L/min per m2 (0.35 SCFM/m2) | |
| Connections | 2.5 in Sch 40 | |
| TMP | ≤2.2 psi | |
| Frame | 304 stainless (316 optional) | |
Approx. cassettes per MGD (double-deck, stated flux): ~28–46 double-deck cassettes per MGD. Preliminary arithmetic from the 15–25 gpm / 260-plate figures — not a plant guarantee.
Installed
In the tank
Municipal membrane tank. The cassette runs submerged. Rendering.
Wastewater treatment · Filtration · Reuse

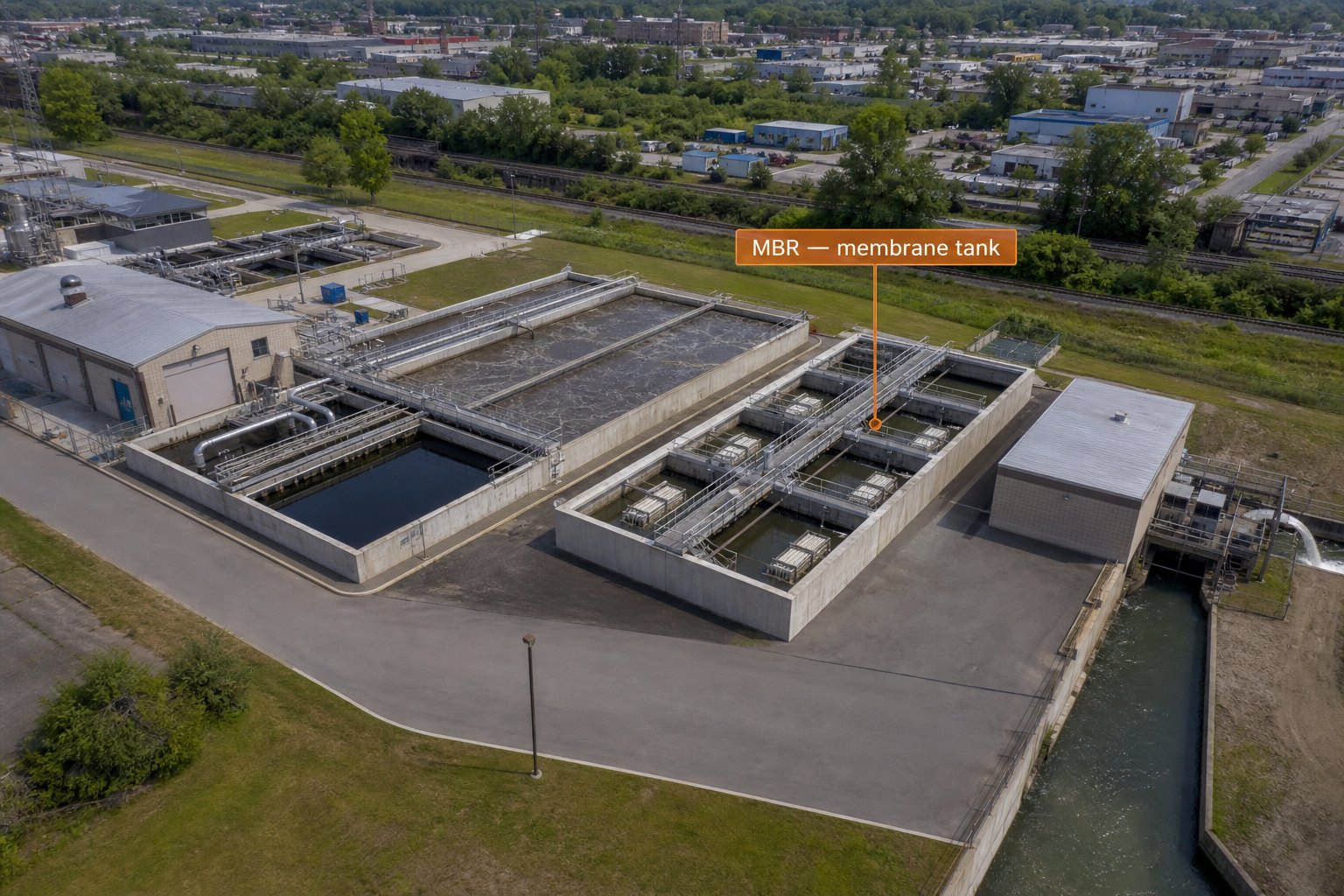

Where the module sits in the plant.
A submerged flat-sheet membrane bioreactor module does the solid-liquid separation in mixed liquor. Activated sludge stays in the tank. Permeate leaves as treated water. That is wastewater filtration for municipal sewage treatment and industrial wastewater treatment. It is also the usual first membrane step for wastewater reuse and water reclamation. The same cassette can be purchased or rented for a pilot or temporary capacity. Plants running other-brand flat-sheet cassettes can ask about replacement plates.
Ultrafiltration and microfiltration
Zyramic Palisade is the polymer MBR cassette. Ceramic modules cover ultrafiltration and microfiltration — silicon carbide and alumina, flat sheet or tube. Alumina reaches into tight UF and near-nanofiltration on some elements. We do not sell a reverse osmosis or nanofiltration element.
CIP and backwash
Clean-in-place (CIP) is the chemical clean for the polymer PES cassette. The PES cassette is not backwashed. Ceramic is the line you backwash, then clean with aggressive chemicals. Recipes stay on the quotation and the O&M.
Downstream reverse osmosis
Plants that need reuse, reclaimed water, or RO pretreatment often put nanofiltration or reverse osmosis after MBR or UF. Zyramic supplies the module upstream. Partners take the rest of the train. Modules, not systems.
Why it stays clean
Every plate gets the same scour.
Targeted scouring puts scour air at the plate. Dedicated scour, every plate. The plate-to-manifold interface is redesigned for service.
Dedicated scour, 24/7, every plate. The cassette wants its own scour air, running. That is how you protect the investment.
Uniform water velocity between each plate. Same velocity, same scour on every plate.
Plates have room to scour. They are 41.2 in (1,047 mm), so the top of the plate stays clean. Channels stay open. You stay out of the tank.

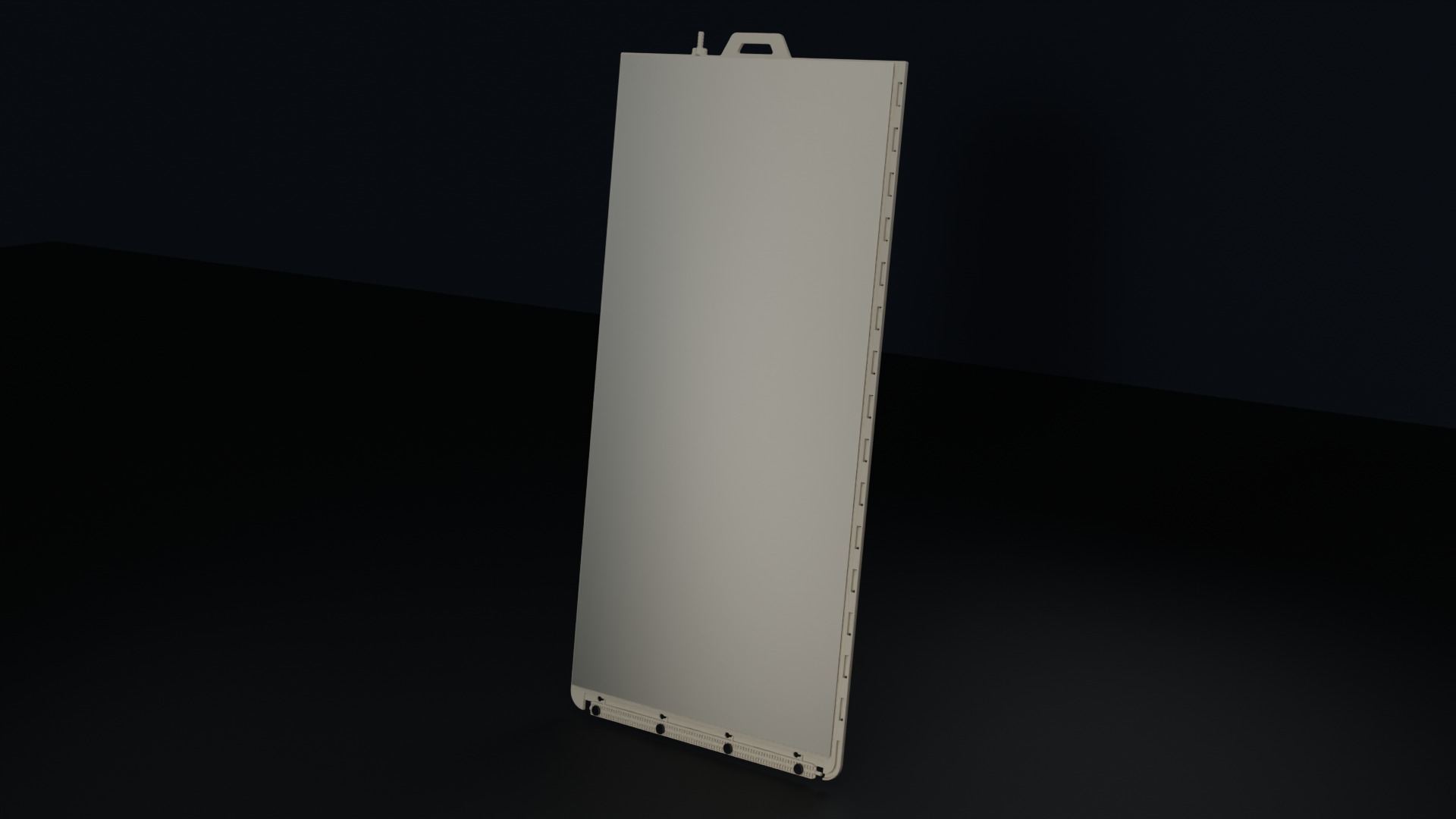

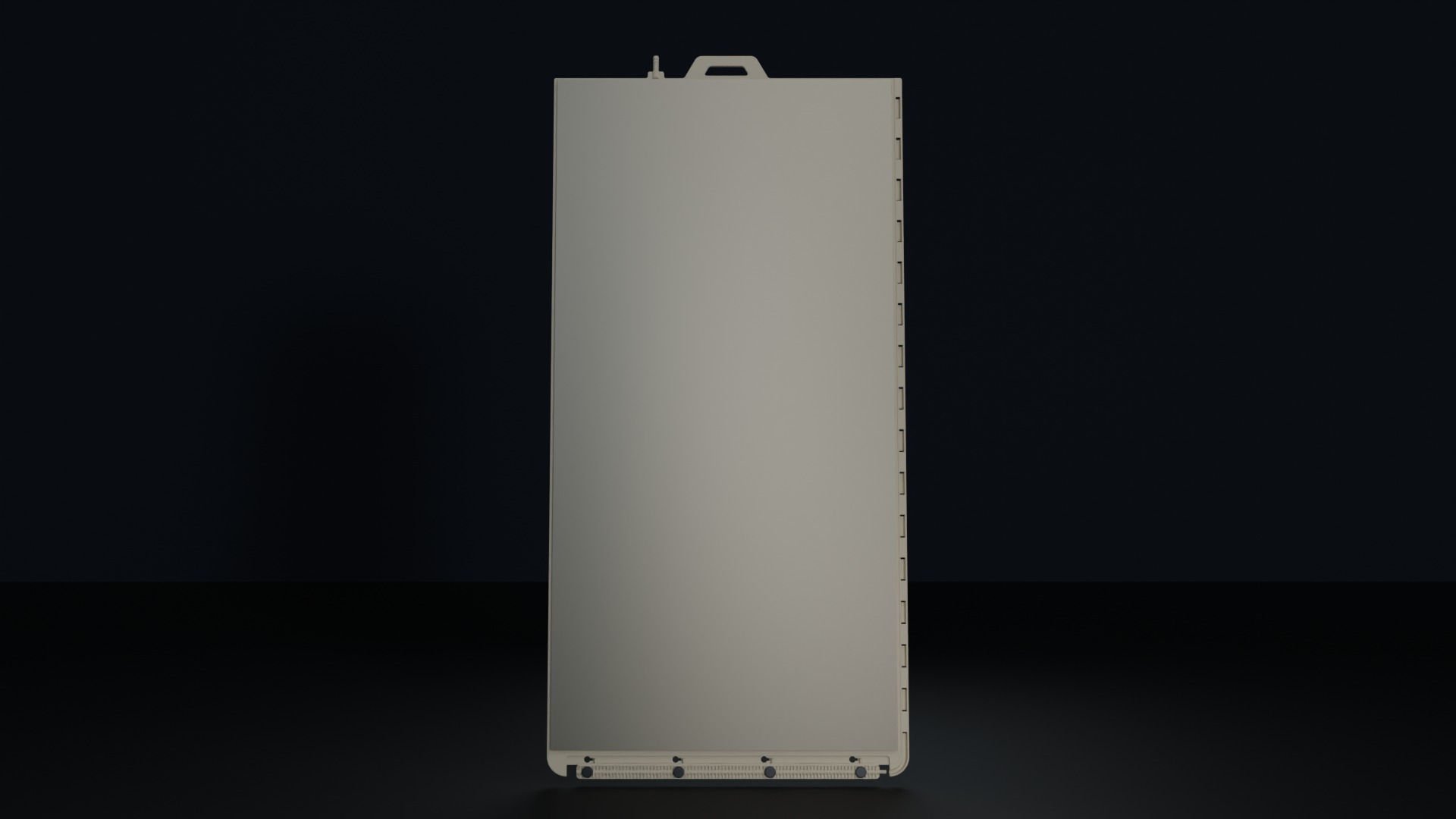

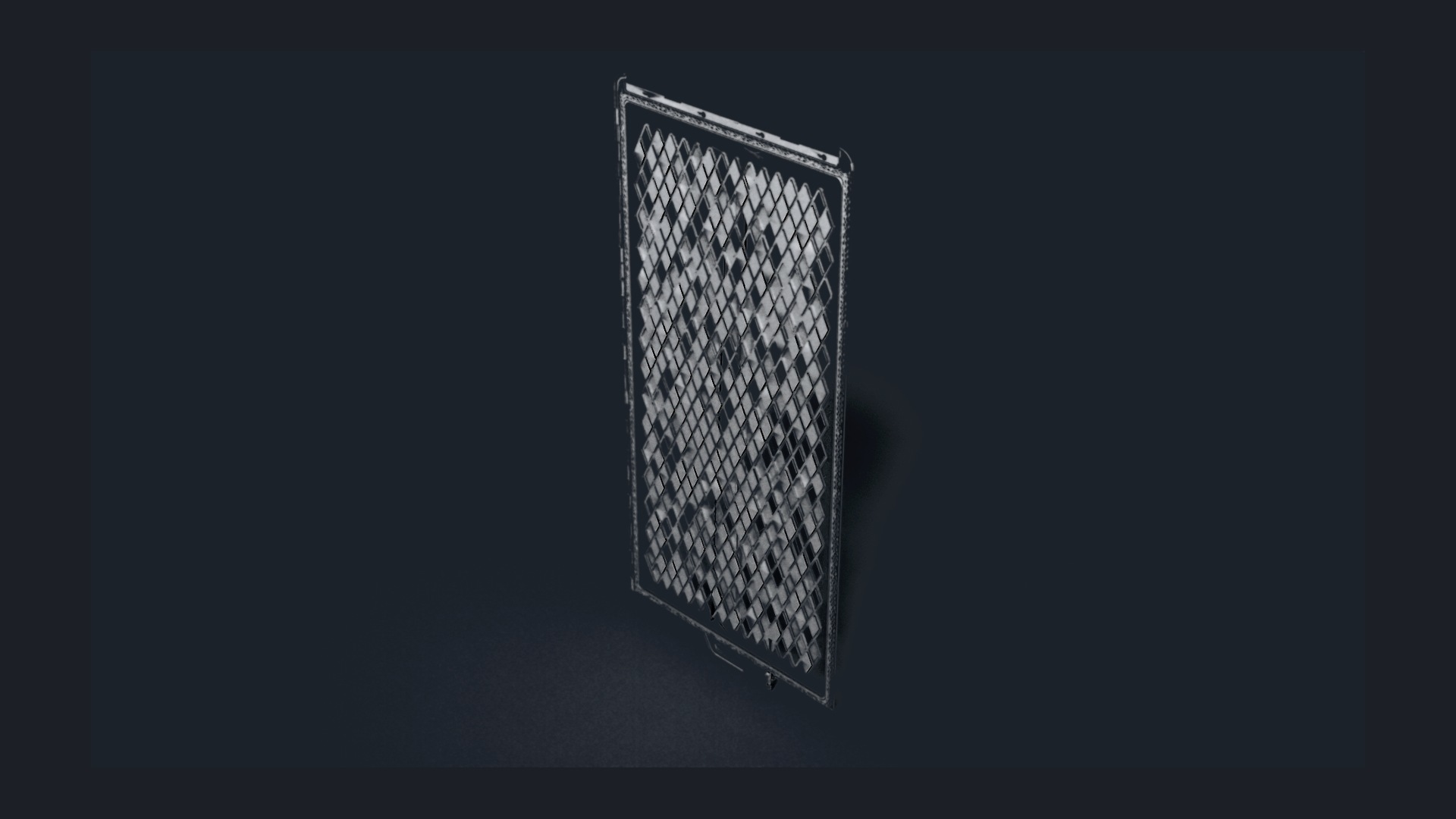

The polypropylene support plate holds PES from a global life-sciences membrane manufacturer. That sheet has been in the market for years. A major German producer already runs it. The plate is a lightened PP plate for handling. PP is a lighter polymer from American natural gas.
Sheet is 0.04 µm PES. Spontaneously wettable. Store wet or dry. No glycol.
The line
Four families. How to choose · Membrane bioreactor · Wastewater reuse
Swing MBR
Compact, lowest footprint. Very affordable and modular. Thin-film composite with conventional air scour. Differentiator: packing density plus Swing-8 / Swing-9.
Ceramic MBR and UF

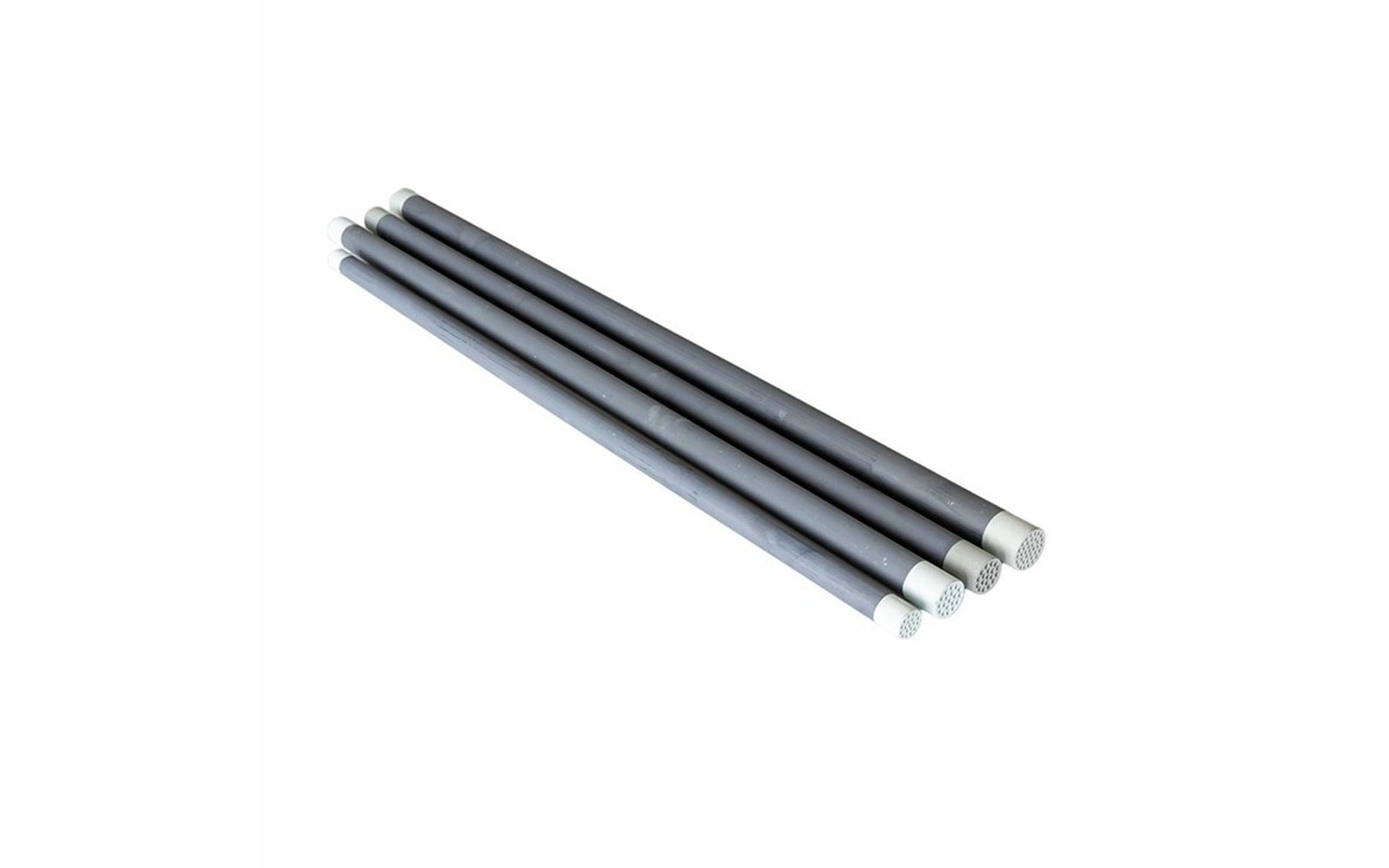

SiC + alumina. Flat sheet: very high flux, backwashable, for industrial wastewater. Tubular: affordable, compact, very high flux pressurized. Elements sourced; Zyramic supplies the modules.

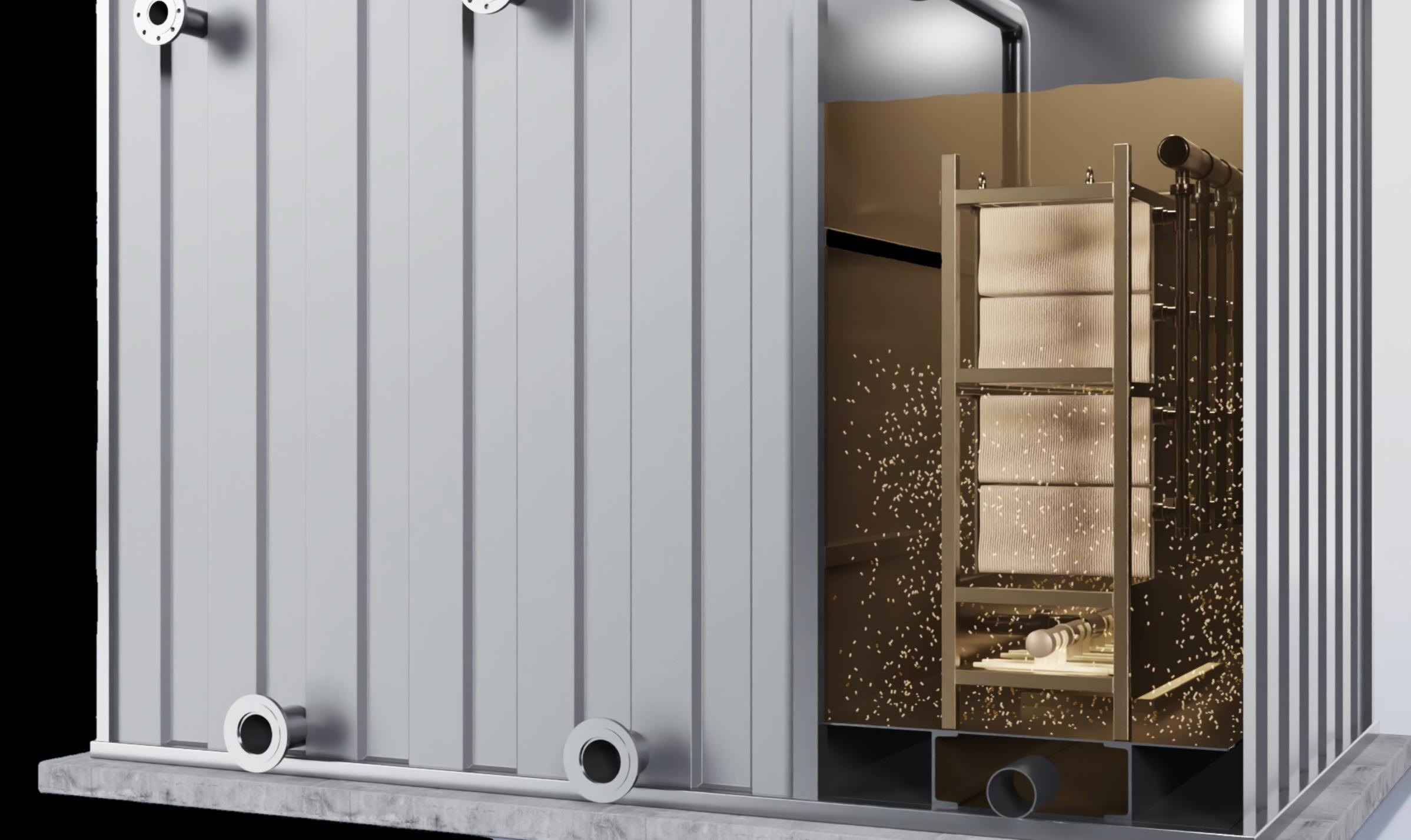

Scrub UF
Unique self-cleaning with circulating rubber media, screen-retained. UF-only, no backwash. Packaged units; trial available. Complement to the MBR line.
Poughkeepsie, New York
Contact
Zyramic, Inc.10 Tucker Dr
Poughkeepsie, NY 12603 USA
+1 845 402 6318
tom@zyramic.com
Cut, welded, assembled, and packed in Poughkeepsie. Build America, Buy America at the module. No PFAS. Field services available. Replacement plates available. Rentals available. Datasheet, O&M, and warranty are on Downloads.
Questions people ask
Straight answers
What is Zyramic?
Zyramic, Inc. makes membrane modules for membrane bioreactors (MBR) and ultrafiltration. The factory is in Poughkeepsie, New York. The line is Palisade MBR, Swing MBR, Ceramic (SiC + alumina), and Scrub UF. Zyramic sells modules, units, and packaged skids, not full plant builds.
Is Zyramic Build America, Buy America compliant?
Yes, at the module. Zyramic Palisade is manufactured in the U.S. of domestic and foreign components. BABA is claimed at the module only. Ceramic origin stays on the quotation. American-built ceramic skids can meet AIS and BABA.
What is Zyramic Palisade?

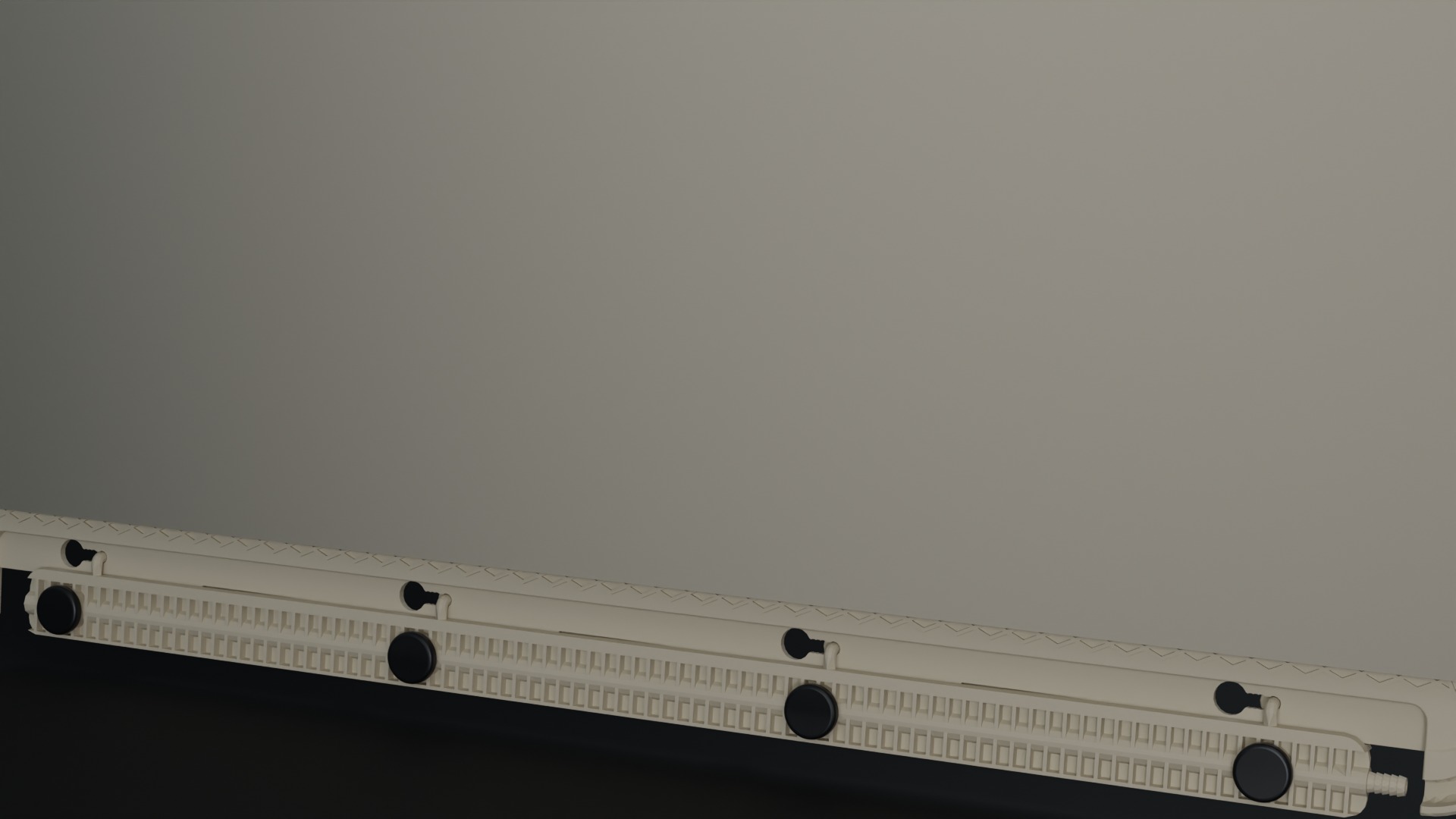

Zyramic Palisade is Zyramic’s polymer flat-sheet membrane bioreactor (MBR) module with targeted scouring. A detachable modular scour manifold attaches to the bottom of the plate. Check valves keep sludge and mixed liquor out of the air path. Dedicated scour runs 24/7 on every plate.
Does Zyramic sell a full wastewater system?
No. Zyramic is the filter and module supplier. Partners take the project and provide the rest of the train. Zyramic sells the module. Partners take the rest of the plant.
What wastewater jobs is this for?
Municipal and industrial wastewater treatment, sewage treatment, wastewater filtration, and wastewater reuse. The polymer cassette is a submerged flat-sheet membrane bioreactor in mixed liquor. Ceramic covers ultrafiltration and microfiltration, including reuse streams you can backwash.
Do you sell reverse osmosis or nanofiltration?
No. Zyramic sells MBR, ultrafiltration, and microfiltration modules. Alumina ceramic can reach tight UF and near-nanofiltration on some elements. Reverse osmosis and nanofiltration, when a reuse plant needs them, sit downstream. Partners take that part of the train.
What is CIP versus backwash?
CIP (clean in place) is the chemical clean for the polymer Palisade cassette. The PES cassette is not backwashed. Ceramic modules are backwashed, then cleaned with aggressive chemicals. Both recipes are written for the job. This site does not publish a strength or a psi.
Can I rent a membrane bioreactor module?
Yes. Zyramic rents Palisade membrane bioreactor (MBR) modules and ceramic UF/MF modules for a pilot, temporary capacity, or a trial before a capital buy. You rent the module, not a treatment system. Terms on the quotation.
Can you make replacement plates for other-brand cassettes?
Yes. Poughkeepsie inventories parts to cut and weld different sizes of membrane bioreactor plates for plants running other-brand flat-sheet cassettes. Field work arranged through Zyramic. Ask on the quote. See replacement plates.
