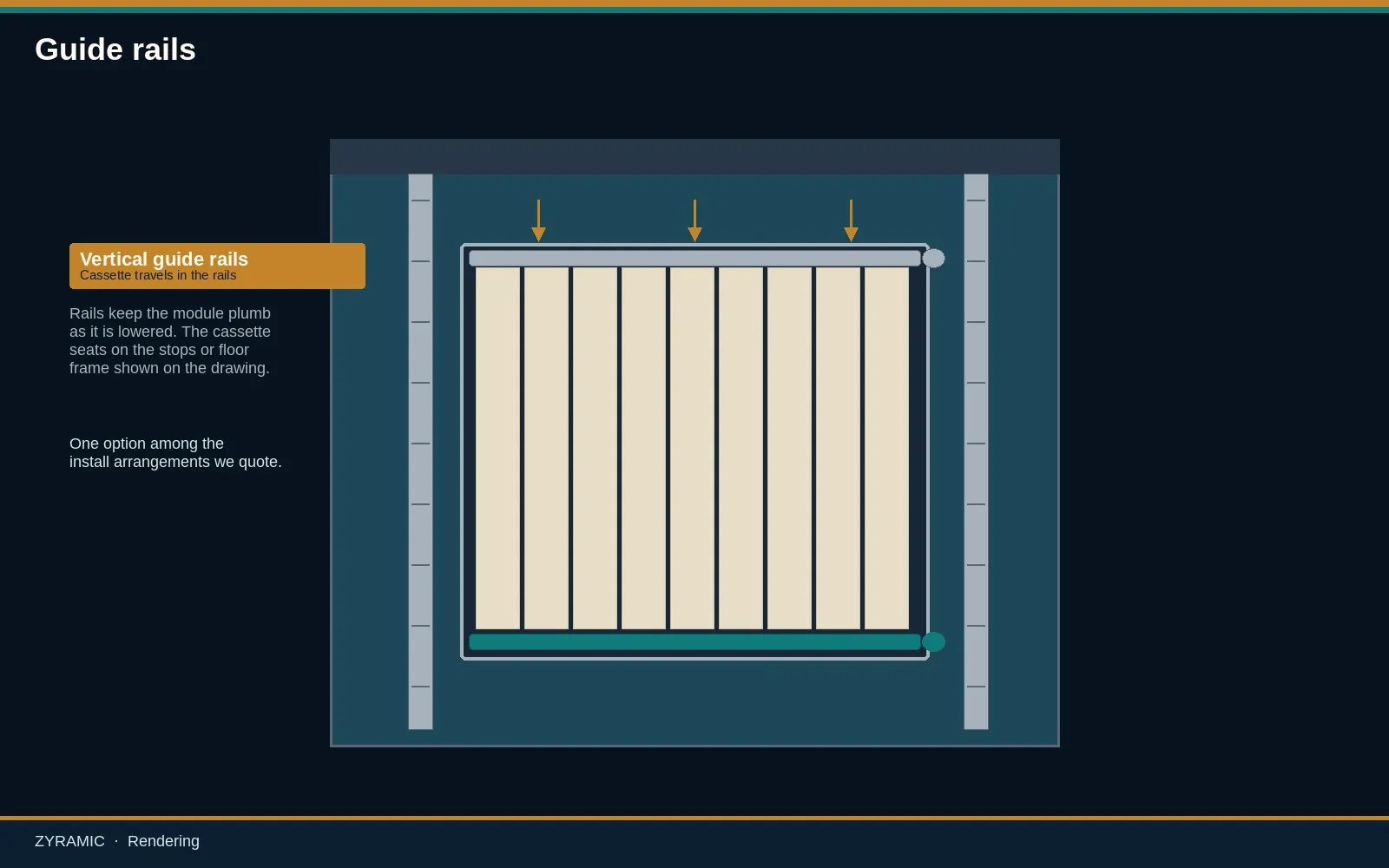

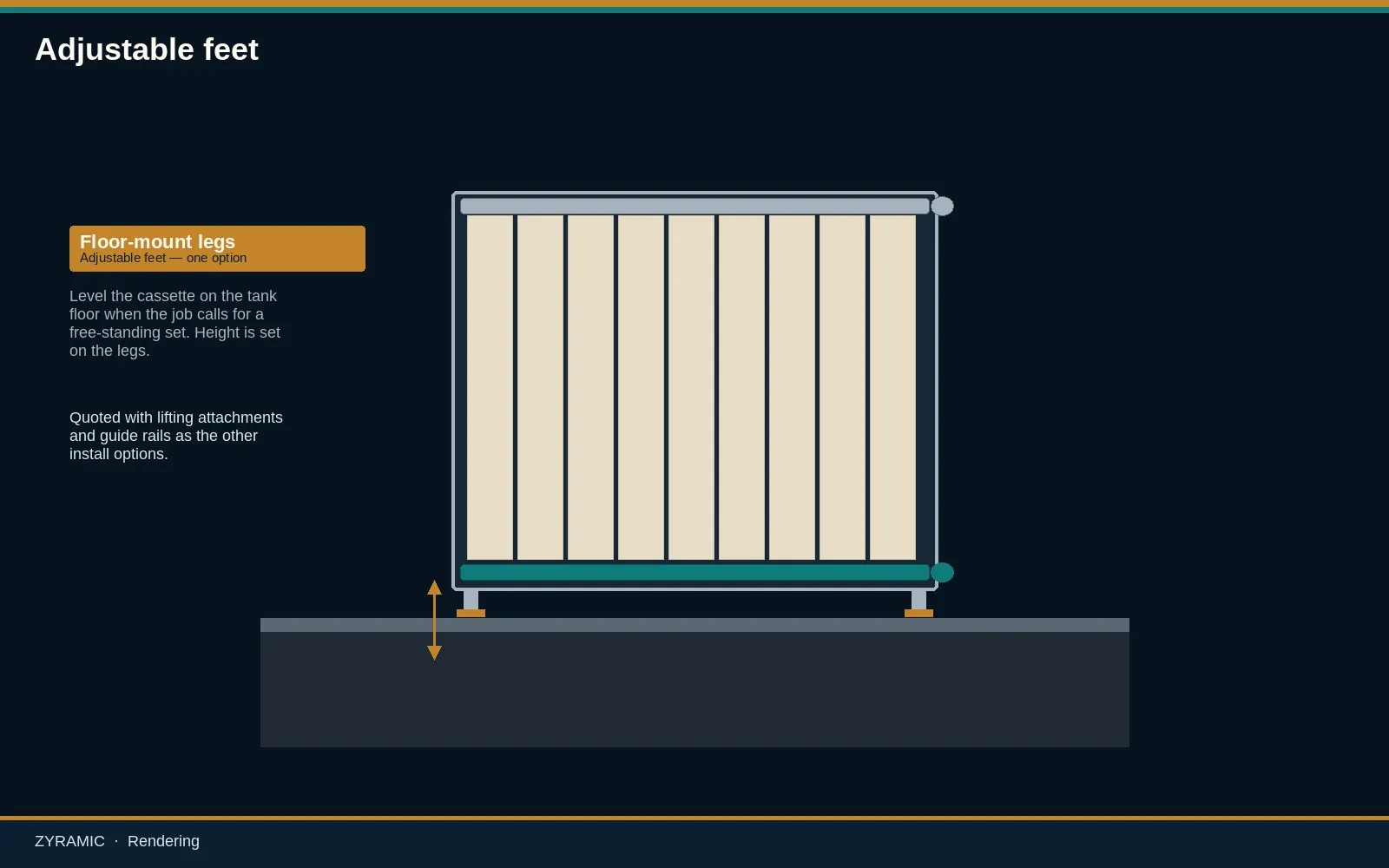

Palisade: a rigid plate, scoured on every channel.

PES membrane welded to solid polypropylene plates, with a detachable scour manifold at the base of every plate. Cut, welded, assembled and packed in Poughkeepsie — BABA compliance available, no PFAS on the plate.

Quote Palisade Rent a cassette

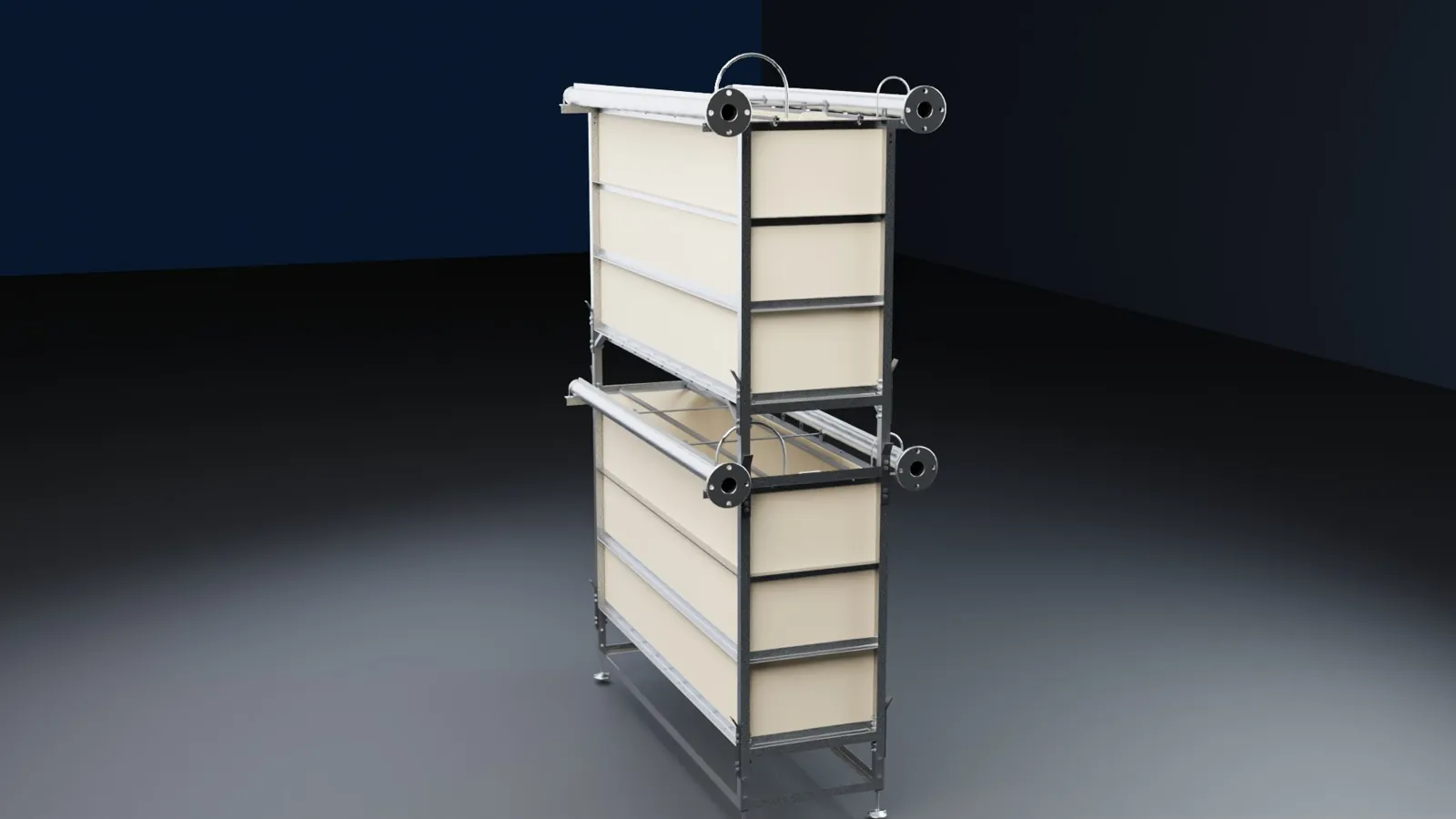

Palisade double-deck MBR cassette render

130 / 260plates, single / double deck

136.5 / 273 m²membrane area

0.04 µmPES standard · 0.4 µm optional

Every platededicated scour path

Targeted scour

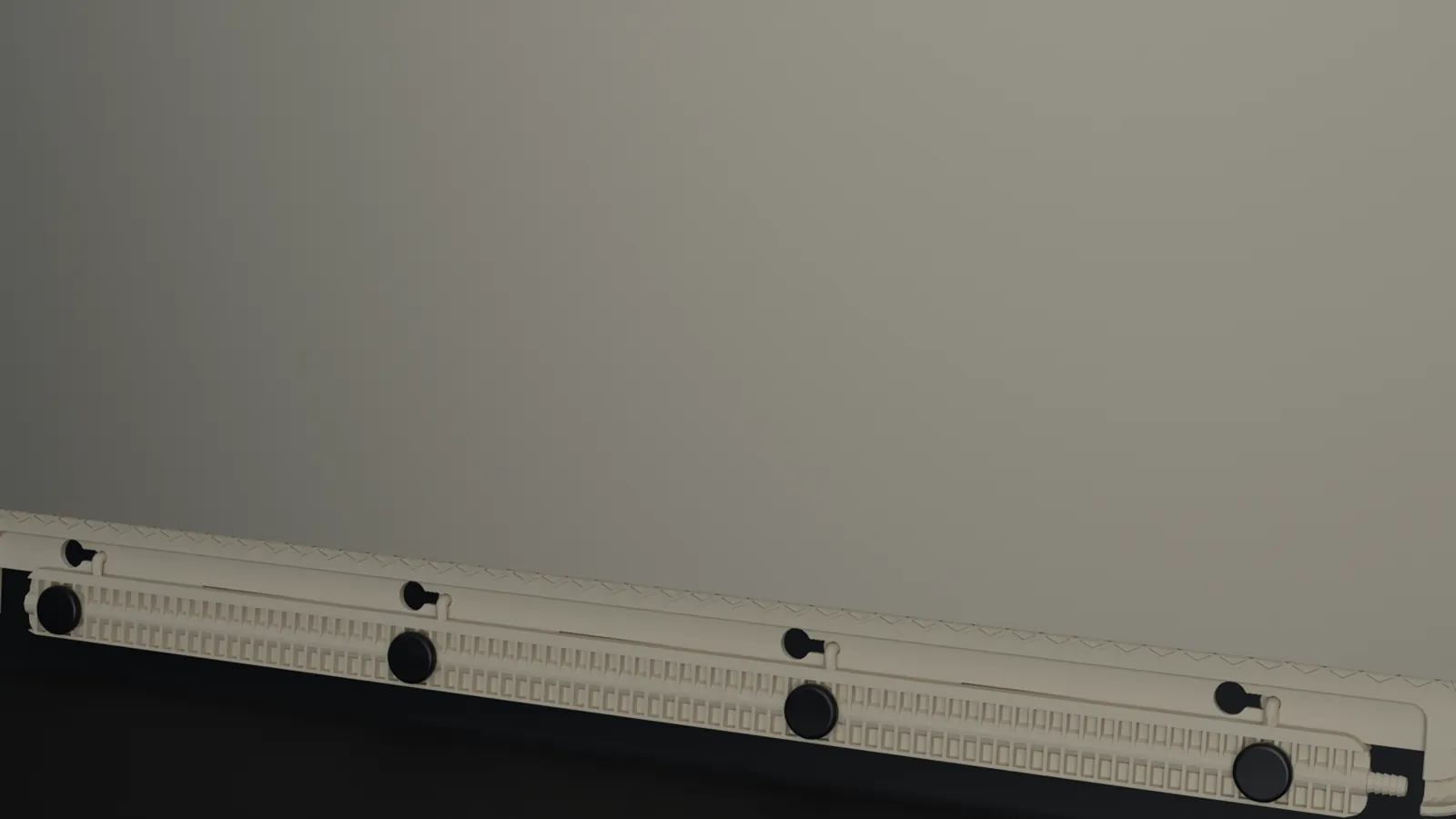

A detachable modular scour manifold sits on the bottom of each plate. Check valves keep sludge and mixed liquor out of the air path. Air reaches the root of every channel — not a lucky subset.

A real support plate

Polypropylene plates hold the PES sheet so edges do not fray or delaminate. Panel 1,047 × 502 mm, 7.6 mm thick, with a 6.4 mm channel gap.

Made here, BABA available

Cut, welded, assembled and packed in Poughkeepsie. BABA compliance is available for most Zyramic modules, so federally funded municipal projects stay in scope. 304 stainless frame standard, 316 optional.

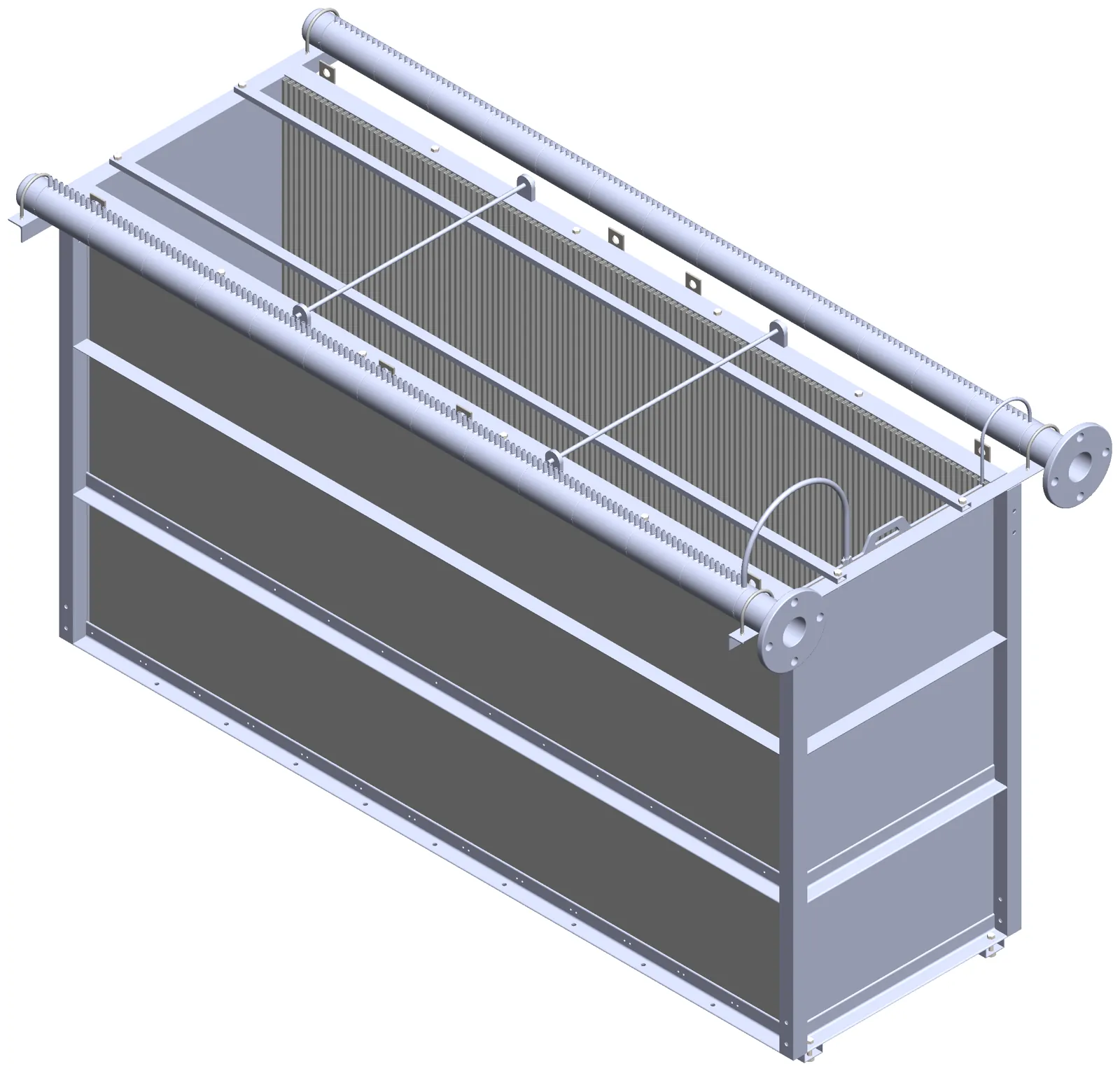

Palisade single-deck module, 130 plates — Single deck · 130 plates · ≈136.5 m²

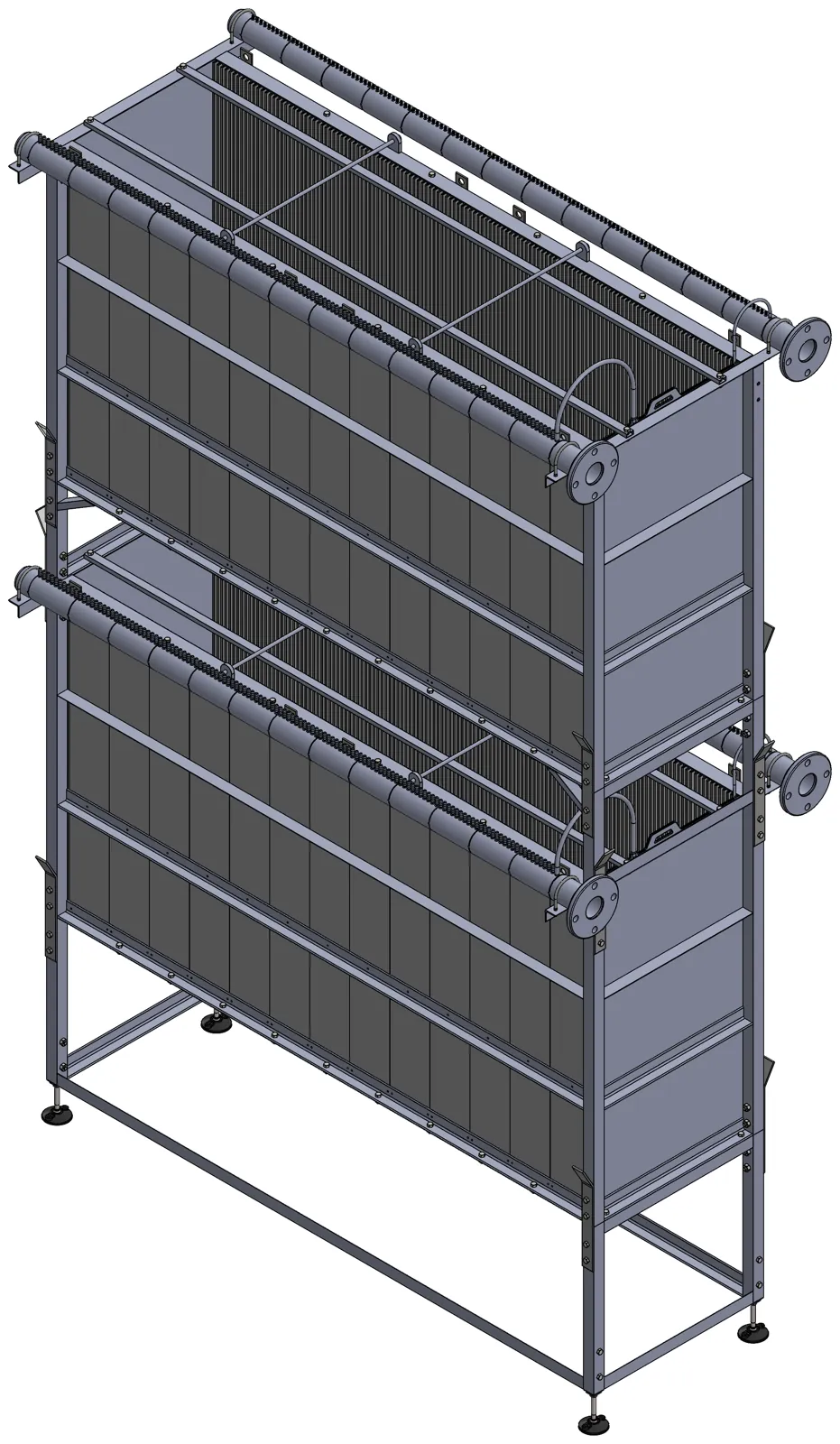

Palisade double-deck module, 260 plates — Double deck · 260 plates · ≈273 m²

Two listed modules

Same footprint, double the area.

About 1.05 m² of membrane per plate (both faces). The single-deck module carries 130 plates; the double-deck module carries 260 plates on the same roughly 7 ft × 3 ft footprint. Panel height of 41.2 in keeps the top of the plate clean.

Palisade dimensional drawing

Technical data

Palisade at a glance.

Parameter	130-plate (single deck)	260-plate (double deck)
Membrane area	≈136.5 m² (1,469 ft²)	≈273 m² (2,938 ft²)
Permeate (design guidance)	≈41–69 m³/d	≈82–136 m³/d
Module scour air	≈82 Nm³/h (48 scfm)	≈163 Nm³/h (96 scfm)
Envelope (L × W × H)	2,106 × 959 × 1,346 mm	2,130 × 959 × 3,329 mm
Frame	304 stainless standard · 316 optional
Membrane	PES, permanently wetted · 0.04 µm UF standard, 0.4 µm MF optional · store wet or dry, no glycol
Design flux (guidance)	12.5–21 LMH
MLSS range	3,000–12,000 mg/L
Filtration cycle	Typically 8 min filtration / 2 min relaxation
Scour intensity	10 L/min per m² of membrane
Cleaning	CIP; not backwashed. Recipe issued per project.

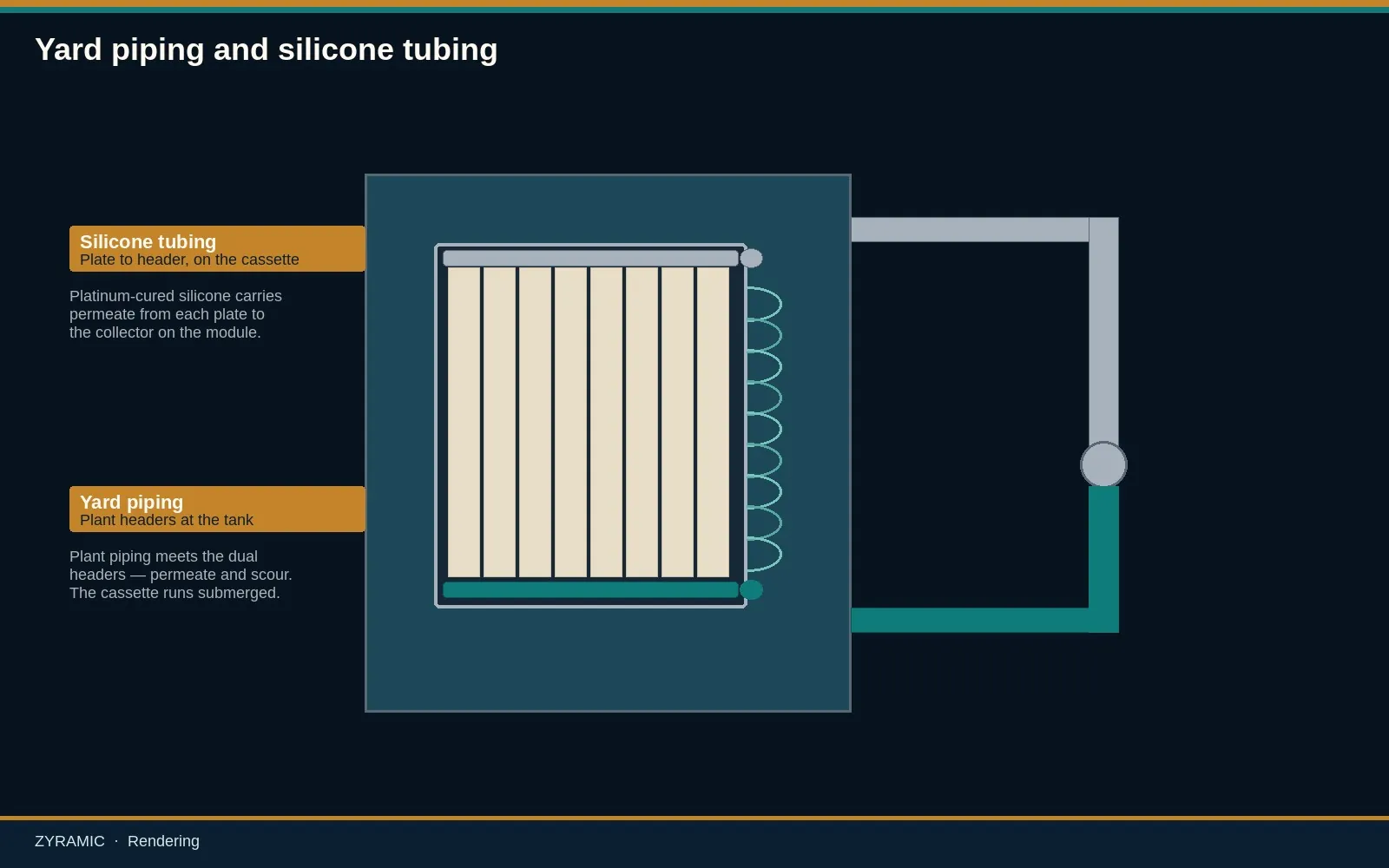

Key connection	2.5 in Schedule 40

Flux and permeate figures are Zyramic design guidance — the engineering basis we size every Palisade project on, set for your feed in the quotation. Palisade is available to buy or rent.

Independent modeling

Why per-plate scour matters.

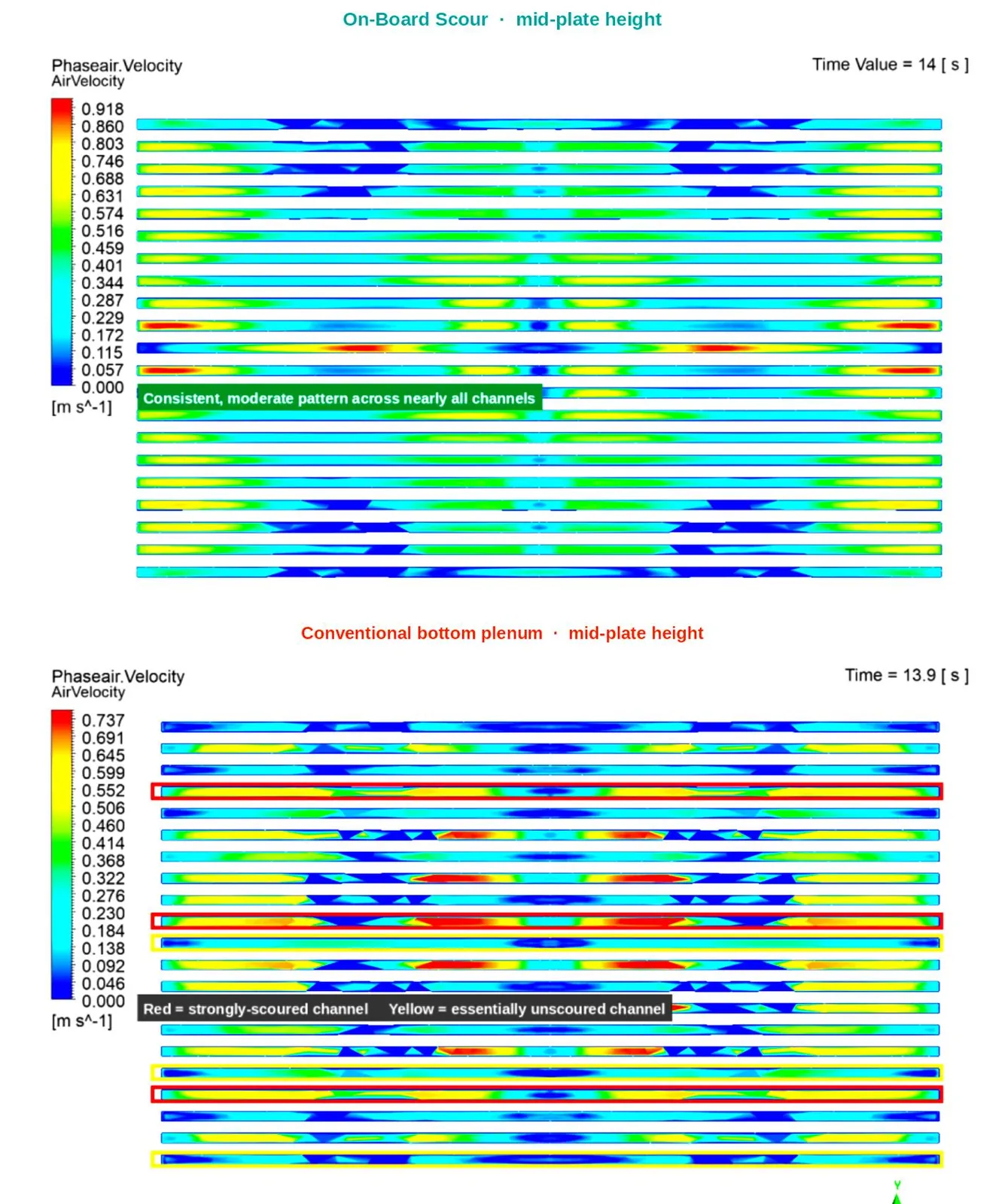

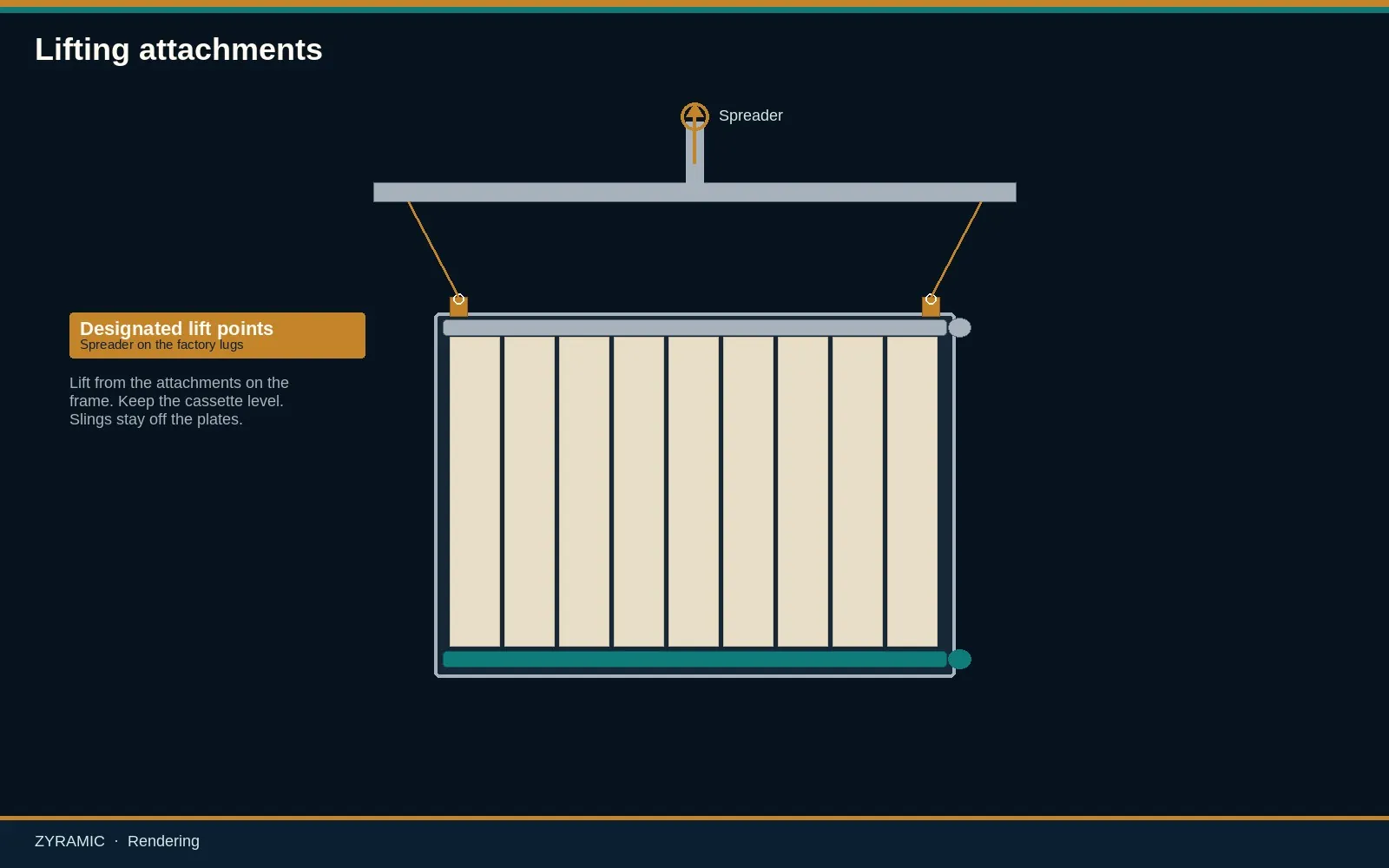

Independent CFD compared targeted scour against a conventional bottom plenum on identical plates and showed about 4× the liquid shear at the channel base. Independent FEA covered the module in operation and lift-out, worst case wetted and double-deck.

Independent computational modeling of the Palisade plate geometry.
