Why MBR keeps coming up in Texas
Rapid development means many package plants and MUD facilities are asked to grow faster than their footprint allows. An MBR can typically treat more flow in the same tanks than a clarifier-based process, which makes it a common retrofit path when a plant is approaching its permitted capacity. Drought pressure also pushes owners toward reuse for irrigation, cooling and industrial supply, and MBR filtrate is a strong starting point for those uses after disinfection.
Heat, variable flow and what it means for membranes
Warm mixed liquor generally helps membrane permeability, but it also speeds biological activity and can make foaming and fouling events arrive faster. Developments with seasonal occupancy, rain-driven inflow and industrial batch discharges all create peaks. Sizing for peak-hour flux with sensible equalization, and choosing a module that operators can pull and inspect easily, tend to matter more than chasing the highest catalogue flux.
Zyramic flat-sheet modules are designed to be serviced in sections. Swing cartridges lift out individually, so a crew can inspect or swap part of a train without draining the whole basin.
Buying, renting or replacing
Texas owners use us in three ways: new modules for a design-build or package plant, rentals for interim capacity during construction or a permit transition, and replacement flat-sheet membranes made to fit an existing cassette. For funded projects, tell us your domestic-content requirements and we'll review what we can document.
| Mild backwash (special cases only) |
|---|
| Backwashing is not a standard Swing operating mode and is not meant for routine use. Swing has been pressure-tested to 14.5 psi (1 bar) and held without breaking. If a site is in a bind even after relaxation and CIP, contact us; we may be able to work out a special mild-backwash procedure. |
Worked sizing example
Take a growing MUD plant at 396,258 gpd (1,500 m³/day) average:
| Item | US | Metric | Note |
|---|---|---|---|
| Average flow | 396,258 gpd | 1,500 m³/day | about 275 gpm (62,500 L/h) |
| Design flux (gross) | 11.8 gfd | 20 LMH | Zyramic design guidance |
| Derate for relaxation and cleaning | ~20% | ~20% | |
| Net flux | ~9.4 gfd | ~16 LMH | |
| Membrane area needed | ~42,046 ft² | ~3,906 m² | average flow ÷ net flux |

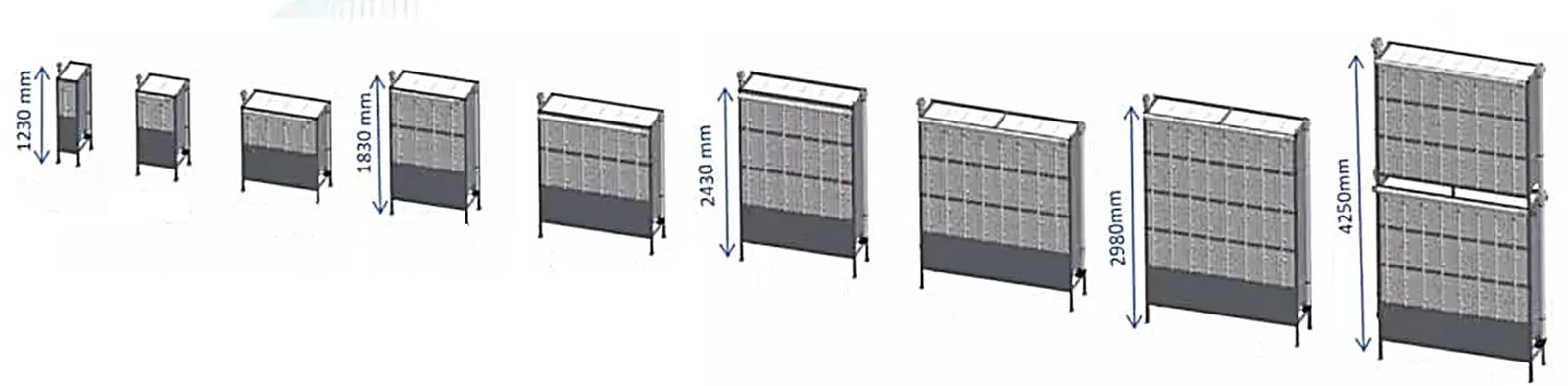

| Swing-8 cartridges | ~313 | ~313 | 135 ft² (12.5 m²) each |
| Peak factor | ~2.5 | ~2.5 | |
| Peak flow | ~990,645 gpd | ~3,750 m³/day | extra area, short-term higher flux, or equalization |
This is an illustration only; a real design also checks temperature, MLSS, redundancy and the cleaning schedule.
Tips for a smooth project
- Size for peak hour as well as average flow
- Invest in good fine screening up front
- Use temperature-corrected flux for cold-weather design
- Plan lifting access so modules come out easily
Next step
Most projects start with a short call or an email with flows and a sketch. We send back a preliminary module layout and a quote, then refine it with your engineer once the process design is firm. If you are still comparing processes, we'll help you choose the right approach for your site.
Sizing considerations
To give a useful recommendation we usually need:
- Permitted and actual flow, plus growth projection
- TCEQ effluent limits or reuse authorization
- Existing tank sizes and number of trains
- Mixed liquor temperature range across the year
- Whether interim rental capacity is needed during construction
Most relevant product: Swing MBR. See also replacement membranes, rentals and how to choose.
Why engineers look at Zyramic flat-sheet modules
| Item | Details |
|---|---|
| Smaller sheets, less wear and tear | each sheet flexes less in service, and a damaged unit affects less area. |
| Strong wide membrane welds | designed to resist delamination over the membrane's life. |
| Thick, robust membrane | about 250 microns including support. |
| Assembled in Poughkeepsie, NY | of domestic and imported components. In our Poughkeepsie shop we cut and weld membrane sheets to plates, build module frames and assemble complete modules. For funded projects, tell us your domestic-content requirements and we'll review what we can document. |
| Buy, rent or replace | new modules, rentals and pilots for US projects, and replacement membranes that fit many existing cassettes. |
Performance and life depend on pretreatment, design flux and operation; flux figures are Zyramic design guidance, sized to each project.
Frequently asked questions
Do you have staff in Texas?
We work from Poughkeepsie, New York, and support Texas projects through engineers, integrators and remote sizing. Modules ship by freight.
Can MBR help a MUD plant that is near capacity?
Often, yes. Converting clarifier-based treatment to MBR can raise capacity within existing tanks, subject to aeration, screening and hydraulic checks.
Can you meet domestic-content requirements?
Our modules are assembled in the USA of domestic and imported components. Tell us your funding source and domestic-content requirements and we'll review what we can document.
Can we rent modules in Texas?
Rentals are available for US projects, including Texas, subject to availability and a site review.
Which Texas applications use MBR most?
Municipal utility districts, master-planned communities, RV parks and resorts, schools, industrial sites and reuse projects are common users, especially where land is limited or reuse water is valuable.
How does heat affect membrane sizing?
Warm water lowers viscosity, which helps flux, but biology and fouling move faster. We size on the full annual temperature range rather than the warmest months alone.
